Ok, everyone gets what they want - more or less, lol.
- Don't want image loading or display at all? Set
image_loading to never in the config.
- Want to only load images manually? Set to
manual.
- Want to load automatically if link conditions are suitable?
auto is the answer.
- Don't care about the bandwidth?
always has you covered.
The whole thing is gated by the terminal actually being able to render images. If not, no images are ever fetched or attempted rendered. This is queried and determined dynamically on startup, so no user config is necessary. If image display is not possible, or disabled in the config, images render as alt-text placeholders instead. The alt-text is mandatory, it must be specified for an image tag to be valid.
No matter what kind of image loading method is specified, images will always load asynchronously after the main page is loaded, re-using the existing link if possible. Images are loaded sequentially, one at a time, in the order they appear on the page. Once an image begins loading, its placeholder changes to a dynamically updating progress indicator showing transfer progress and speed. Once the image is fully loaded, poof! It appears on the page!
Images are cached locally, and will only download if the local cache is empty. I haven't fully worked out the cache specification mechanics yet, so that is still a pending item. For now, you can manually clear and reload for a page with Ctrl-X.
While I haven't finished implementing this yet, the request format is prepared for using a per-link key, so images cannot be deep-linked from other nodes than the one serving them; that is, you will be able to specify that images are only served to clients viewing a page on your node, and not from somewhere else. This will probably be the default.
The current implementation adds zero extra dependencies or bloat to the program. This was a bit tricky, since webp decoding is not exactly a five-liner in Python (or any language). What I ended up doing was to create a decoding multi-backend proxy, that should be able to resolve a working webp decoder on more or less any operating system. The nice thing here is, that almost every OS in existence already has some way of decoding webp (one good thing about web-browsers, I guess), so in most cases we can just find the distro-installed libwebp.so (or dylib, or dll), and hook into that via ctypes.
So yeah, in most cases, it's just using the OS-native decoding through the C ABI. It also supports using common utilities such as image magick convert, ffmpeg, sips and such. Yes, PIL works too :)
If you have a terminal that does support image display with Kitty TGP, but it's still not working, you can run python -m nomadnet.ui.textui.images._selftest and post / send me the results.
From the beginning, my intention with this was to only allow webp for network transport, and judging the feedback, I think that's still a pretty safe bet to begin with. There's some good points about JPEG XL, hadn't thought about that actually, but I'm not sure if it actually will prove to be more bandwidth efficient than WebP at high compression. I'll have to run some tests on that at some point to determine it.
Either way, adding JPEG XL will be a down-the-road thing once the whole basic functionality is proven and the kinks worked out. If you knew the hoops I had to jump through just to get webp decoding working without adding massive dependencies and bloat, you'd understand ;) Adding progressive JPEG XL loading and rendering will be a massive undertaking. Not impossible, just massive.
Regarding progressive / bandwidth selective loading, it may actually be simpler and more optimal overall to allow sending a profile key on the request (similar to LXST profiles), which will dynamically downscale and increase compression level at the node, before sending (that was my initial plan). Same result, at lot less over mechanistic overhead. Anyway, I'm open to the idea and will keep both in mind. But for now, webp it is ;) The selective profile-based loading is not implemented yet, but the system is prepared for it. At this point, it's probably better to wrap up an initial release of this, and see how it works in the wild, adjust and improve, and bundle all of that stuff into the next iteration, when there's more real-world data. So let's consider the current state of affairs the initial, experimental base-line.
Having a per-image download / modal view button is a great idea, if you just want an easy way to download images instead of viewing the in-page. I haven't implemented this yet, but that should definitely be added.

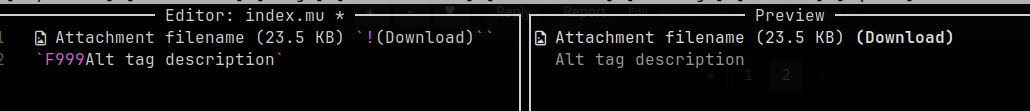

Media serving is now built into nomadnet itself as well, of course, so the built-in page node can serve images for pages. See the relevant guide sections on how to create micron image tags. The "Display Test" guide entry also tests image display now, so you can check easily if it works.
For rngit, the page node has also been updated, so it can natively serve images within rendered documents, display them in the file tree browser, et cetera. This is in the latest source version on Aleph. There's still a few finer points missing here, for example auto-conversion of image tags in markdown documents, but all the fundamentals are working (you can see the RNS logo in the Reticulum repo readme now). There's an automatic media converter here, that will convert non-webp images to webp for transmission, so more or less all images/graphics should work transparently.
If you want to try it out, all the source is on Aleph now. I'll probably wrap up a release for nomadnet shortly, so it can be tested a bit more conveniently, but the rngit changes will have to be fetched from source until the next release.
I took a lot of care to try and design and implement this in a way that is robust, degrades neatly, makes sensible use of resources, and doesn't destroy functionality or the experience for users who don't want or need it, while keeping nomadnet itself as light-weight as possible. That being said, there's bound to still be weirdness, bugs or edge cases I haven't considered, so I think it's best to let this have a real spin in the wild to see how it goes. Consider everything experimental regarding to this; we'll adjust and correct if something turns out idiotic.
